Cross Roller Bearing by THK JAPAN

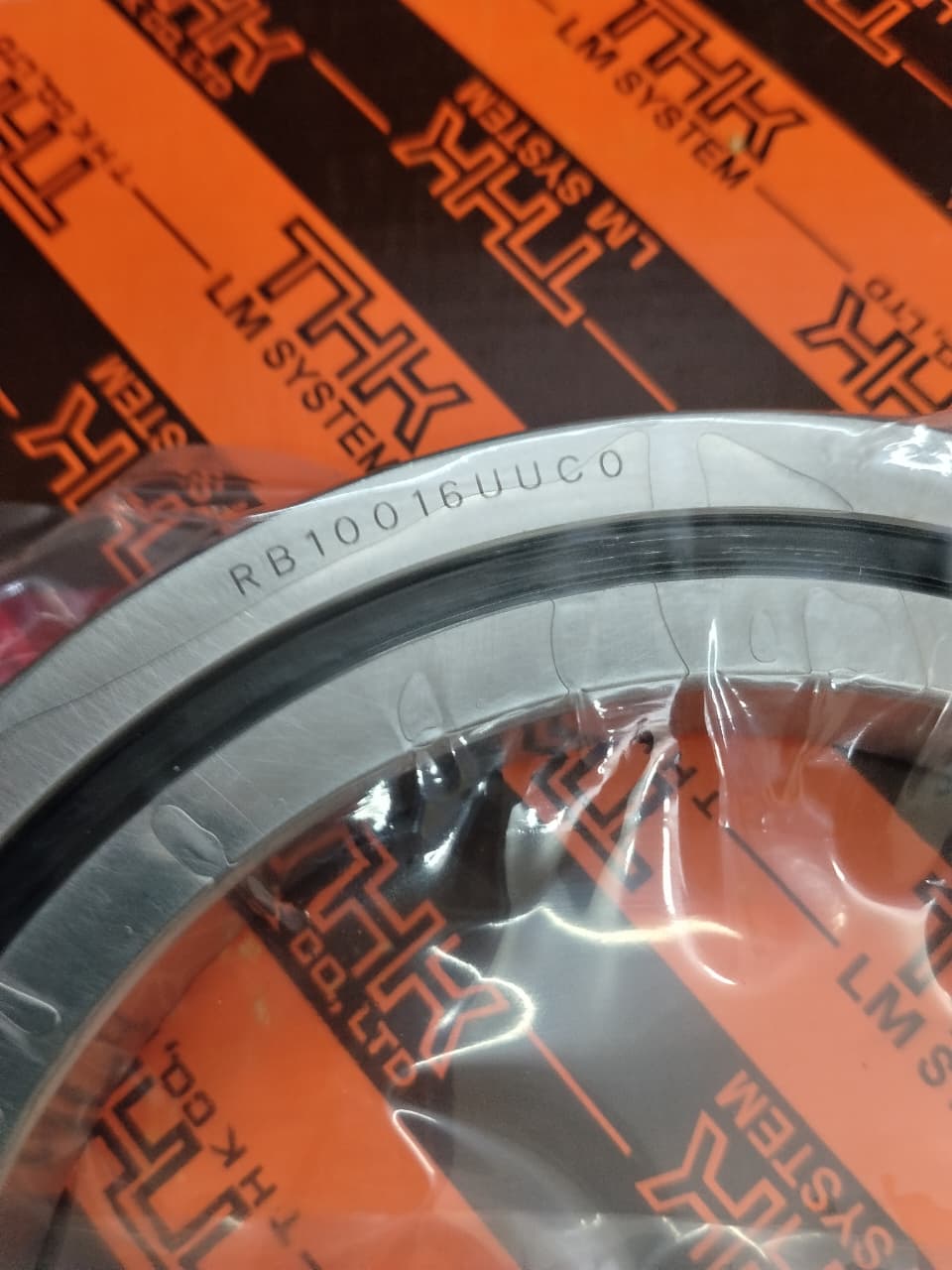

RB10016UU THK JAPAN BEARING

INR 10099INR 25000
In stock

Description

The RB10016UU is a precision crossed roller bearing commonly used in high-accuracy machinery such as robotics, CNC tables, and rotary indexing systems.

🔧 Basic Meaning of Code (RB10016UU)

RB → Crossed roller bearing (separable outer ring type)

100 → Inner diameter = 100 mm

16 → Width = 16 mm

UU → Double sealed (both sides sealed)

📏 Main Specifications

Inner Diameter (d): 100 mm

Outer Diameter (D): 140 mm

Width (B): 16 mm

Weight: ~0.83 kg

Dynamic Load Rating (C): 31.7 kN

Static Load Rating (C₀): 48.6 kN

⚙️ Bearing Type & Construction

Type: Crossed Roller Bearing

Structure: Single row rollers arranged at 90°

Design: Separable outer ring, integrated inner ring

Sealing: Double sealed (UU type)

Material: Steel rings + steel rollers

🔄 Key Features

Supports combined loads:

Radial load

Axial (thrust) load

Moment load (tilting forces)

High rigidity & precision

Compact design (saves space)

Smooth rotation with minimal friction

Suitable for high-accuracy positioning

🏭 Typical Applications

Industrial robots

CNC rotary tables

Machine tool spindles

Medical equipment

Precision measuring instruments
