LM20 UU FUZUKA

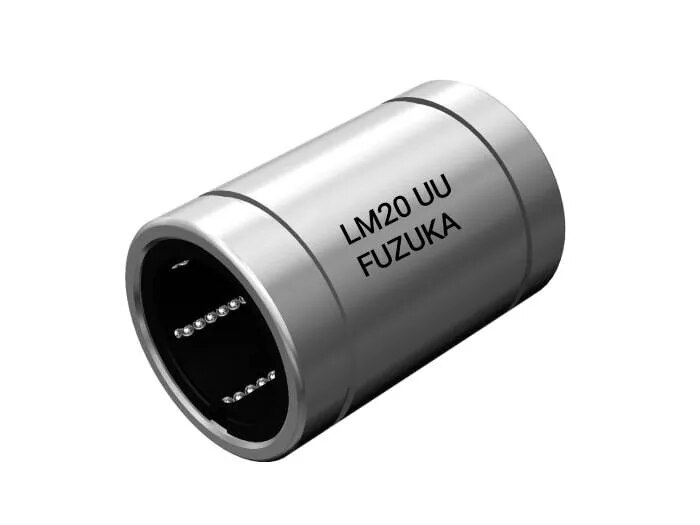

An LM20UU is a linear ball bearing designed for smooth linear (straight-line) motion along a shaft. It doesn’t rotate like a normal radial bearing — instead it slides along a straight 20 mm hardened shaft, guided by recirculating steel balls inside the bearing housing. This type of bearing is widely used in CNC machines, 3D printers, automation systems, robotics, and sliding mechanisms.

Model : LM20UU

Type : Linear Ball Bearing

Inner Diameter (d): 20 mm

Outer Diameter (D): 32 mm

Overall Length (L): 42 mm

Seal Type : UU (Sealed on both sides)

Shaft Diameter : 20 mm

Material : Bearing steel (outer & balls)

Retainer : Polymer / Steel (varies by manufacturer)

Motion Type : Linear (sliding)

Lubrication : Pre-lubricated (grease)

Fuzuka linear bearing
