THK JAPAN BEARING IMPORTER IN INDIA

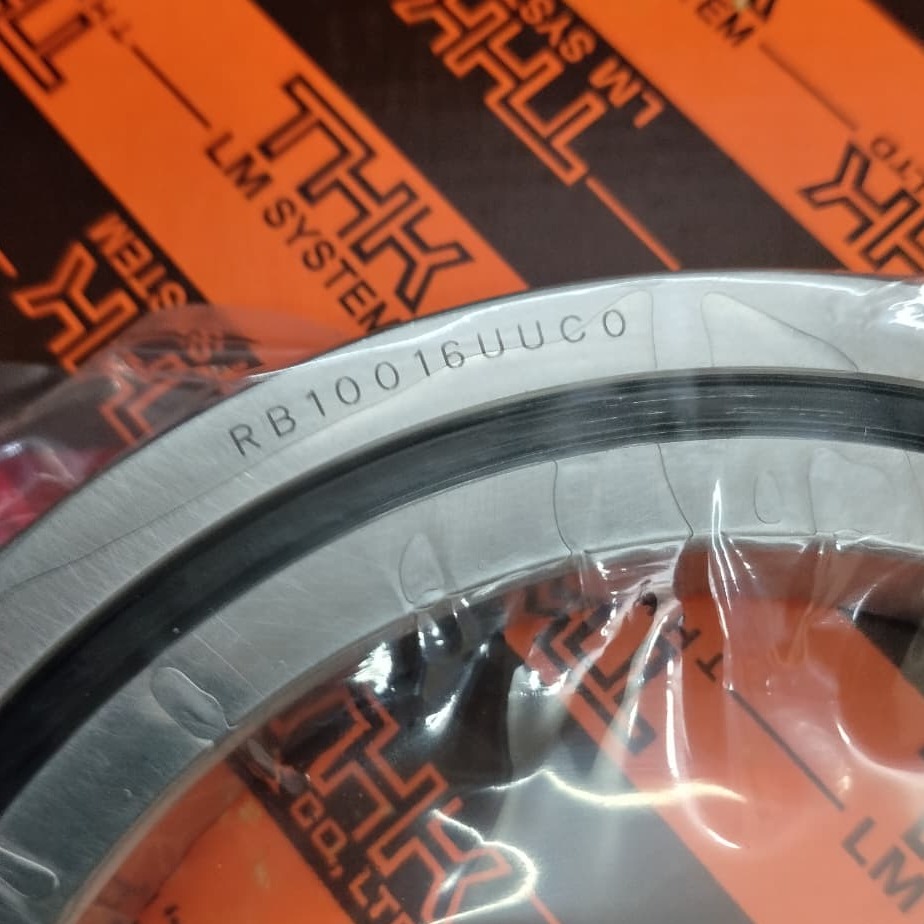

RB10016UU BEARING DEALER IN DELHI THK JAPAN BEARING DEALER IN DELHI THK JAPAN BEARING IMPORTER IN INDIA THK JAPAN BEARING IMPORTER IN DELHI THK JAPAN BEARING IMPORTER IN HARYANA THK JAPAN BEARING IMPORTER IN TAMIL NADU The RB10016UU is a precision crossed roller bearing commonly used in high-accuracy machinery such as robotics, CNC tables, and rotary indexing systems. 🔧 Basic Meaning of Code (RB10016UU) RB → Crossed roller bearing (separable outer ring type) 100 → Inner diameter = 100 mm 16 → Width = 16 mm UU → Double sealed (both sides sealed) 📏 Main Specifications Inner Diameter (d): 100 mm Outer Diameter (D): 140 mm Width (B): 16 mm Weight: ~0.83 kg Dynamic Load Rating (C): 31.7 kN Static Load Rating (C₀): 48.6 kN ⚙️ Bearing Type & Construction Type: Crossed Roller Bearing Structure: Single row rollers arranged at 90° Design: Separable outer ring, integrated inner ring Sealing: Double sealed (UU type) Material: Steel rings + steel rollers 🔄 Key Features Supports combined loads: Radial load Axial (thrust) load Moment load (tilting forces) High rigidity & precision Compact design (saves space) Smooth rotation with minimal friction Suitable for high-accuracy positioning 🏭 Typical Applications Industrial robots CNC rotary tables Machine tool spindles Medical equipment Precision measuring instruments RB10016UU bearing JMD ENGINEERS AND TRADERS 9999320939 9999820939
