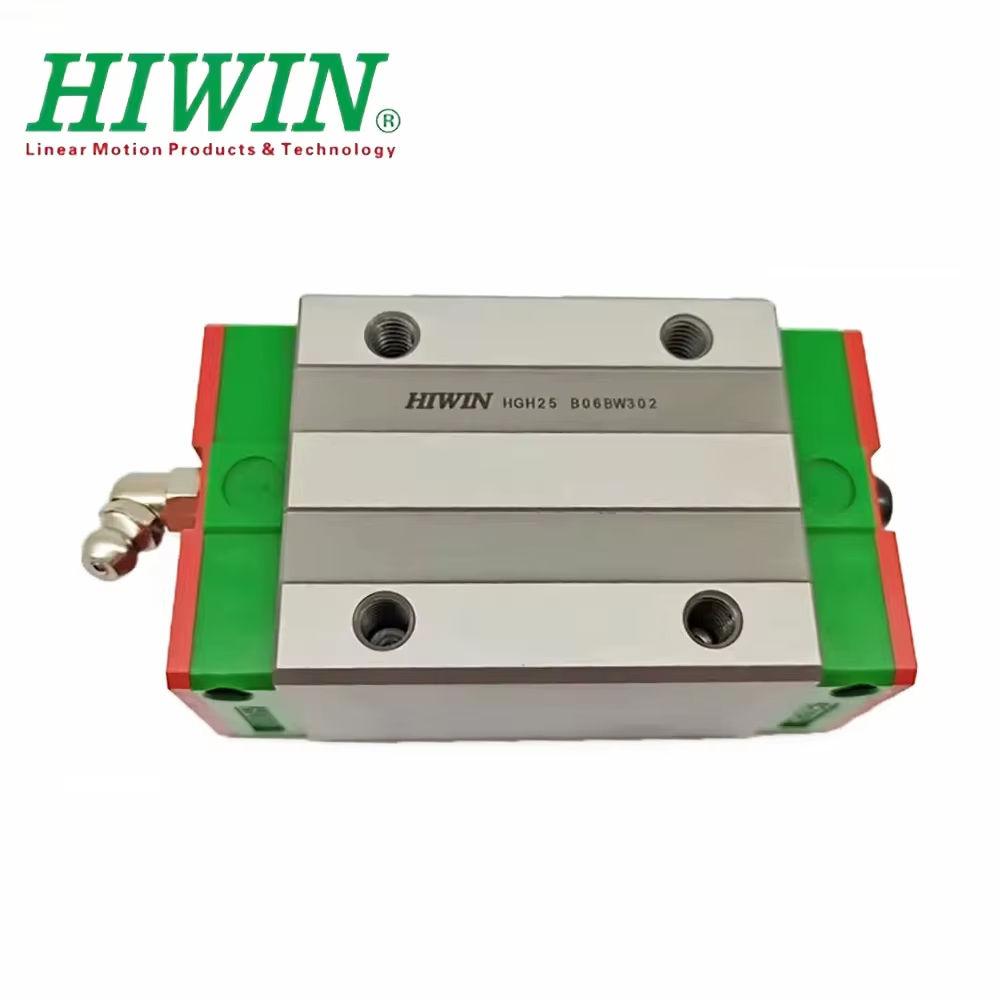

HIWIN Linear Guide Blocks are precision-engineered linear motion components designed to provide smooth, accurate, and low-friction movement along a linear guide rail. Manufactured by HIWIN Technologies, these blocks utilize recirculating ball bearing technology to achieve high load capacity, excellent rigidity, and long service life in industrial automation and machinery applications.
Key Features
High Precision Motion: Ensures smooth and accurate linear movement with minimal friction.
High Load Capacity: Supports radial, reverse radial, and lateral loads in all directions.
Low Friction Coefficient: Reduces power consumption and improves operational efficiency.
Excellent Rigidity: Optimized ball raceway design provides superior stiffness and stability.
Long Service Life: Hardened steel construction and efficient lubrication system enhance durability.
Interchangeability: Many HIWIN series offer interchangeable rails and blocks for easy maintenance.
Easy Installation: Compact design with standardized mounting dimensions simplifies assembly.
Applications
CNC Machines
Industrial Automation Systems
Packaging Machinery
Semiconductor Equipment
Robotics and Pick-and-Place Systems
Printing Machines
Medical Equipment
Material Handling Systems
Typical Specifications
Available in various sizes such as HGH15, HGH20, HGH25, HGH30, HGH35, HGH45, and larger.
Block styles include square-type (HGH) and flange-type (HGW).
Precision grades ranging from Normal to Ultra Precision.
Suitable for high-speed and high-accuracy linear motion applications.
Benefits
HIWIN linear guide blocks provide reliable, precise, and maintenance-friendly linear motion solutions, making them an ideal choice for applications requiring high accuracy, smooth operation, and long-term performance under demanding industrial conditions.
